OM-D E-M1 Mark II
Product type: Micro Four Thirds interchangeable lens system camera.
Memory: SD, SDHC [1]. SDXC [1], Eye-Fi Card compatible [2]. 1 Slot1: UHS-I, II
compatible, Slot2: UHS-I compatible. 2 Not compatible with Endless Memory. Sensor
size: 17.4 mm (H) x 13.0 mm (V). Lens mount: Micro Four Thirds Mount. Image
Sensor: Product type: 4/3 Live MOS Sensor. Number of pixels / aspect ratio: Number
of effective pixels: Approx. 20.4 million pixels. Total number of pixels:
Approx. 21.8 million pixels, Aspect ratio: 1.33 (4:3), Dust reduction: Supersonic
Wave Filter (image sensor dust reduction system). Recording (Still): Recording
format: DCF2.0, Exif2.3, File format: RAW (12-bit lossless compression), JPEG,
RAW+JPEG. Recording image size: [RAW] 5184 x 3888 pixels, [JPEG] 5184 x 3888
pixels - 1024 x 768 pixels. Dual Slot Settings: Standard, Auto Switch, Dual
Independent, Dual Same, When two cards are inserted, the card to be saved on to
or to be viewed can be designated. Folder creation and selection: With. Copy: Copy
single file, copy multiple files, copy all. When copied, the new file will be
given a different name from that of the original file.
Image Stabilization System: Type: Built-in 5-axis sensor-shift
image stabilization for movie and still photos yaw / pitch / roll / vertical shift / horizontal shift. Mode: 4
modes (S-IS AUTO, S-IS1, S-IS2, S-IS3), OFF. Live View image stabilization: Activation
by half-pressing shutter button or enlarging the view. Focal length setting: 11
settings: 10 programmable settings (10 lenses), 1 open setting. Lens IS priority:
With. 5 axis Sync IS: With. When using M.Zuiko Digital lenses equipped with
image stabilization. Stabilization
performance: 5.5 EV. Based on CIPA
measurement conditions. When using M.Zuiko Digital ED 12-40mm f/2.8 PRO (focal
length =40mm (35mm equivalent: 80mm)). Live View: Approx. 100% field of view, exposure
compensation preview, WB adjustment preview, gradation preview, face detection preview (up to 8 faces), grid
line, magnification display (x3 / x5 / x7 / x10 / x14), Display modes: Standard,
Histogram, Highlight & Shadow, Level Gauge, Off (Image Only). Preview: Preview with depth of field
preview lock. Live View Boost: Live View Boost 1 , Live View Boost 2 (slow
frame rate for dark areas). Settings
can be assigned for each shooting mode. Exposure
compensation will not be applied.

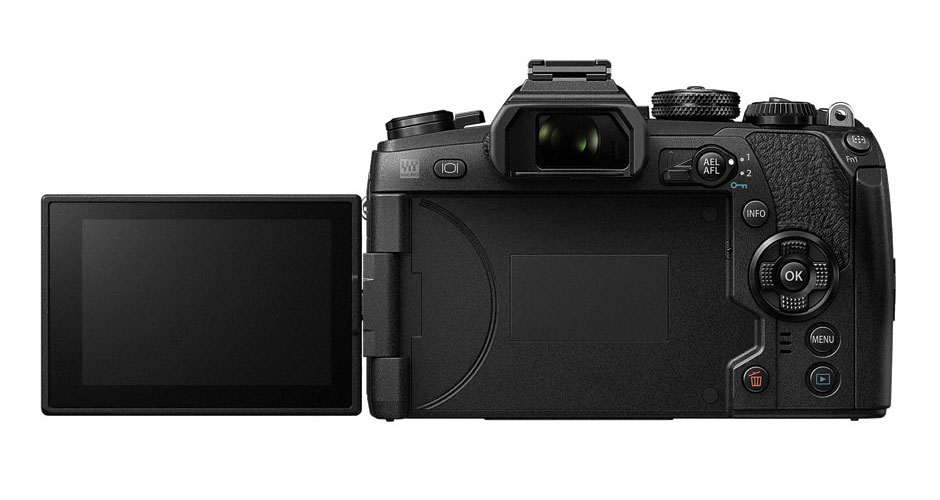

Monitor: Monitor type: 3.0-inch vari-angle monitor. Approx. 1037k dots (3:2),
electrostatic capacitance touch panel. Touch
control: Shutter release, magnification, AF area selection, AF area size
adjustment, AF target pad, frame forward/backward, magnified playback, Live
Guide, Super Control Panel, Wi-Fi connection, movie controls, movie effects,
movie tele converter , selfie controls (shutter release, e-Portrait, custom
self timer). Tilting capability: With
(mirror display when monitor is in self portrait position). Brightness / Color temperature control: ±7 levels / ±7 levels.
Color tone select: Vivid / Natural. Focusing.
AF system: High-speed imager AF: Imager phase detection AF and imager contrast
AF (active AF automatically selected by camera; when a Micro Four Thirds lens
is attached, imager phase detection AF is always selected). Focusing point: 121-point cross-type phase detection AF and
121-point contrast AF. Focusing
point selection mode: All target, group target (9-area or 5-area), single
target. Focus mode: Single AF (S-AF)
/ Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF / AF tracking (C-AF +
TR) / Preset MF[*]. Distance setting
values are rough estimates and not compatible lens except the AF lens. AF performance: C-AF lock (5 steps),
AF scanner (3 types) AF limiter: With (Fn button can
be assigned to On/Off; can save 3 settings). Distance setting values are rough
estimates.
AF targeting pad: With (activate / deactivate with double tap on
rear monitor). Magnified frame AF: 3x , 5x , 7x , 10x , 14x. Autofocusing is
possible in the magnified frame; can be assigned to button to turn magnify
frame AF on and to activate magnification; touch icon on monitor to turn off;
enables selection of AF point from over 800. Super spot AF: With (Contrast AF
in center of the monitor when magnified). Available only when a Micro Four
Thirds lens is attached. Face detection AF / Eye detection AF: With (Eye
Detection AF mode : off / nearer-eye priority / right-eye priority / left-eye
priority). Manual focus assist: Focus ring rotation activates Live View image
magnification and / or focus peaking when in S-AF+MF or MF mode. Peaking
function: Activate with Fn button or focus ring. Change peaking settings using
the Info button. Color selection: white, black, red, yellow. Intensity
selection: high, normal, low. Back light effect: on, off. AF Focus Adj. Adjust
all, adjust by lens (for Phase detection AF only). AF illuminator: With. Shutter:
Shutter type: [Focal-plane shutter (mechanical shutter)] 1/8000 - 60 sec., with selectable EV
adjustment steps (1/3, 1/2, 1) Live Bulb / Live Time: selectable exposure time
(1 / 2 / 4 / 8 / 15 / 20 / 25 / 30 min.), with 8-min. default setting. Live
Composite: maximum shooting time 3 hours. [Electronic first curtain shutter
(Anti-shock mode)] . 1/320 - 60 sec. [Electronic shutter (Silent mode)] . 1/32000
- 60 sec.
Flash: Flash intensity control method: TTL Auto, Auto[*], Manual,
Super FP[*] (FP-TTL AUTO, FP-MANUAL). Available
on the external flash. Bundled
standard flash: FL-LM3 (dustproof and splash proof flash). GN = 9.1 (ISO100・m)
/ GN = 12.9 (ISO200・m) . Bounce
Capability (up and down: 45, 60, 75, 90 degree / left and right 30, 60, 90,
120, 150, 180 degree) Powered by the
camera. Flash mode: Redeye, Fill-in, Flash Off, Red-eye Slow sync. (1st
curtain), Slow sync. (1st curtain), Slow sync. (2nd curtain), Manual (1/1
(FULL) ~ 1/64). Synchronization speed: 1/250 sec.. When using Super FP: 1/125-1/8000 sec. When using electronic shutter: 1/50 sec. up to ISO6400, 1/20 sec.
for ISO 8000 and higher, and 1/20 sec. for ISO bracketing. Flash intensity control: Up to ±3 EV in 1/3, 1/2, 1 EV steps
selectable. Compatible external flash: FL-50R, FL-36R, FL-20, FL-14, FL-300R,
FL-600R, FL-900R, STF-8. Wireless
Flash Control. Compatible external
flash: FL-50R, FL-36R, FL-300R, FL-600R, FL-900R. Control method: Triggered and
controlled by Olympus Wireless RC Flash system compatible flashes: included
FL-LM3 or separately available FL-600R and FL-900R, STF-8. External Flash intensity type TTL
Auto, Auto, Manual, FP-TTL-AUTO, FP-MANUAL.
Channel: 4 channels. Group No.: 4 groups (External flash 3 groups +
commander flash). White Balance. White balance mode: Auto WB, 7 Preset
WBs, 4 Capture WBs, Custom WB(Kelvin setting). White balance compensation: ±7
steps along A-B / G-M axis (Except for Custom WB). Color Mode: Color matrix: sRGB,Adobe RGB. Picture Mode: Mode: i-Enhance,
Vivid, Natural, Muted, Portrait, Monotone, Custom, e Portrait, Underwater, Color
Creator, Art Filters. Gradation: Auto,
Normal, High Key, Low Key [except when using i-Enhance, Underwater, Art Filters,
Color Creator]. Hilight and shadow control: ±7 steps each for highlight,
shadow, midtone. color): 18 color selectable
Color Creator: Color Creator: Color pattern : 30 colors /
Saturation setting -4 ~ +3. HDR
Function. HDR(Auto composite): HDR1,
HDR2 (painting-like). ISO
sensitivity is fixed at 200, and maximum shutter speed setting is 4 sec. Exposure compensation can be
performed. Bracketing for HDR post
process: 3 or 5 frames in 2.0 or 3.0 EV steps, or 7 frames in 2.0 EV steps. This
sequential shooting H AE bracketing is specifically for shooting images that
will be HDR-processed on a PC. Keystone
Compensation. Keystone Compensation:
With (can be confirmed in Live View). Horizontal
and vertical compensation can be performed simultaneously. High Res Shot: Resolution:
Equivalent to 50 megapixels / 25 megapixels (8 shots combined into a single
JPEG using sensor shift). Available
in P/A/S/M mode, RAW+JPEG or JPEG. JPEG:
8160 x 6120(50M) 5760 x 4320(25M) / RAW: 10368 x 7776. RAW data can be developed in-camera. Development by PC is
possible with Olympus Viewer 3 ver. 2.0.
Shutter Type: Electronic shutter Shutter Speed: 1/8000 - 60 sec. Shutter
start delay: 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30sec. Charge Time: 0, 1, 2, 4,
8, 15, 30sec. Anti-shock Mode.
Shutter Type: Electronic first curtain shutter. Shutter Speed: 1/320 - 60 sec. For speeds over 1/320 sec., mechanical
shutter will automatically be selected. Shutter
start delay; 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30 sec. Silent Mode. Shutter
Type: Electronic shutter. Shutter Speed: 1/32000 - 60 sec. Shutter start delay:
0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30 sec.
Silent Mode Settings: Settings for sound, AF illuminator, and flash can be customized
(default setting is Off for all three). Live
Bulb /. Live Time. Update interval
time: 0.5 sec. - 60 sec.
Live Composite: Update interval time / composite method: 0.5 sec. -
60 sec. / Lighten Mode (Bright area prioritisation). Interval Mode. Interval
Mode: Interval Time 1 sec. - 24 hours, Max 999 frames. Automatic creation of
time-lapse movies possible. Multi Exposure. Number of picture / Function: 2
frames / auto gain adjustment, exposure on recorded picture (RAW) Multi Aspect:
Aspect Ratio: 4:3 (Default) / 3:2 / 16:9 / 1:1 / 3:4. One push Tele-converter. Magnification:
x2. Level Gauge. Detection: 2-axis. Recording (Sound). Recording format: Wave
Format (Stereo linear PCM/16-bit, Sampling frequency 48kHz). Microphone /
Speaker: Built-in stereo microphone / built-in mono speaker. External stereo
microphone can be attached. Microphone function Wind noise reduction, recording
volume, microphone volume limiter, Audio dubbing possible for still pictures
(up to 30 sec.) May affect audio quality. IC recorder linkage: Slate Tone / Synchronized
Audio Rec-Movie Rec. LS-100 compatible. Wi-Fi Function. GPS info. Function; Via
smartphone GPS data. Wireless Shooting: Live View, Rec View, Wireless Touch AF
shutter, Self Timer (w/Countdown guidance, Sequential shooting, movie recording
capability), Wireless Release, Movie Recording, Power Off. I Auto / ART / P / A
/ S / M (Live Bulb, Live Time, Live Composite) and drive mode can be selected. Aperture,
shutter speed, exposure, ISO sensitivity, white balance can be adjusted. When
in private connection. Image Share: File Type: JPEG, MOV. Connect to up to 4
devices simultaneously. Marking function for image share. Easy Connection: QR
code setting.
Tethered shooting: Tethered shooting: Via USB cable (camera can be
operated by both PC or camera controls) Playback:
Playback mode: Single-frame, information display, index display (4/9/25/100
frames), Clips, calendar, enlargement (2x - 14x), movie (with sound,
FF/REW/Pause), picture rotation (auto), slideshow (with sound including BGM,
Slide show effects, replaceable BGM), Light Box display. Information display: Histogram (independent luminance / RGB
available), Highlight/Shadow point warning, AF frame, Photographic information,
OFF. Image Editing: Movie Editing function: Trimming (beginning / end) /
in-movie image extraction[*] (4K only). MOV
format only. Editing function: RAW data edit, Gradation auto, Monochrome,
Sepia, Red-eye fix, Saturation, Resize (1280x960, 640x480, 320x240), Trimming,
Aspect, e-Portrait, Image Overlay, Post recording. RAW data edit: RAW data edit based on settings of the camera
(including e-Portrait, Color Creator, Art Filter, ART-BKT). 2 programmable
settings, preview capability. Print:
Print function: Print reservation (DPOF), Direct print (Pict Bridge
compatible). Menu: Languages: 34 languages selectable :
English, French, German, Spanish, Italian, Japanese, Korean, Traditional
Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese,
Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian,
Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian,
Rumanian, Indonesian, Malay, Thai.
Custom: Mode dial my set Modes
C1, C2, and C3 can be accessed by mode dial.
Menu my set: Modes C1, C2, and C3 can be accessed via the menu. Dial customization: Dial function and
dial direction are customizable for both dials. Lever Customization. Select assignment from 3 different modes,
power switch, or off (no function assignment). Button Customization Buttons can
be customized (select from 35 functions). Buttons on lenses and HLD-9 power
batter holder can also be customized from the camera: Some buttons may have
restrictions to what functions can be assigned. Copyright Settings/Lens info Settings With / With (save up to 10 lenses). Input / Output. USB: USB Type-C. Remote controller connector φ2.5PinJack (when using separately
available RM-CB2). HDMI connector: Micro
HDMI (type D) Flash attachment: Hot
shoe, sync terminal. Wireless LAN: Built-in (IEEE 802.11b/g/n). Microphone
input jack: φ3.5 stereo mini jack (plug-in power on/off). Headphone connector: φ3.5 stereo mini jack. PC interface: Super
Speed (USB3.0). Power Requirements:
Battery: BLH-1 Li-ion battery (included).
Battery status display: Remaining power (4 steps, %, or by-minute display),
shot count, degradation.
Power Battery Holder: HLD-9 power battery holder is separately
available (holds one BLH-1 battery). AC
Adapter: AC-5 AC adapter is separately available (connects to power battery
holder HLD-9 to provide power to camera).
Sleep mode: With (1 / 3 / 5 min. off). Number of recordable images: Approx.
440 shots (using BLH-1 and Toshiba SDHC UHS-I Card Exceria with IS ON, with no
flashes attached, based on CIPA test standards). Approx. 950 shots (using quick
sleep mode, under Olympus testing conditions based on CIPA test standards) Battery life for movie recording: Approx.
90 minutes (under standard JEITA testing). Approx. 150 minutes (when zoom and
other operational functions are not used).
When repeatedly recording at the maximum time of 29 minutes. Dimensions /
Weight: Dimensions: W: 134.1 mm, H: 90.9 mm, D: 68.9 mm (based on CIPA
standards: excludes protrusions). Weight:
Approx. 574 g (with BLH-1 battery and Memory card, based on CIPA standards) . Approx. 498 g (body only). Operating
Environment. Temperature: -10 ~ +40°C (when in operation) / -20 ~ +60°C (when
stored). Humidity: 30 - 90% (when in operation) / 10 - 90% (when stored). Box contents: Box contents: Body, USB
cable, cable clip, shoulder strap, instruction manual, warranty card, FL-LM3
flash, BLH-1 Li-ion battery, BCH-1 rapid Li-ion battery charger.
WATCH VIDEO:
No comments :
Post a Comment
